> Passive elements>Fuses>Fuse holders>Stelvio Kontek fuse holders, 6,3A, insulated, for 5x20mm, PTF series

Manufacturers

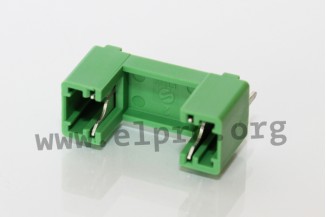

fuse holders PTF von Stelvio Kontek

• clip fuse holder consisting of a soldered-holder with insulated brass springs
• for glass tube micro fuses 5x20mm
• made of polyamide-68, self-extinguishing (UL94V-0)
• cover is not included
• metal parts made f...

fuse holders PTF von Stelvio Kontek

• clip fuse holder consisting of a soldered-holder with insulated brass springs
• for glass tube micro fuses 5x20mm
• made of polyamide-68, self-extinguishing (UL94V-0)
• cover is not included
• metal parts made from brass with nickel layer, tin-plated
• operating voltage, max.: 250V AC
• rated current: 6.3A
• contact resistance, max.: 5mΩ
• insulation resistance, min.: 102MΩ
• dielectric strength: >3000V AC/60s
• PCB mounting hole: Ø 1.5mm
• colour: green
• by Stelvio Kontek

• cover for fuse holder BS 232 VE must be ordered separately

> More
--
Showing 1 - 3 of 3 products
  • Product Stock Unit price Volume discounts
  • Stelvio
    PTF 76
    0,15 €
    27556 PTF 76 PTF/76 PTF/76
    0,15 €

    More
    Stock: 4.860
  • Stelvio
    PTF 78
    0,122 €
    27542 PTF 78 PTF/78 PTF/78
    0,122 €

    More
    Stock: 75.770
  • Stelvio
    BS 232 VE
    0,052 €
    44371 BS 232 VE BS232VE BS232VE
    0,052 €

    More
    Stock: 92.260
