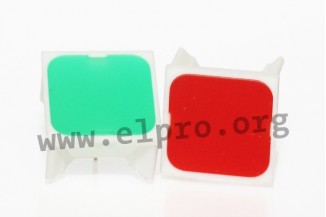

tact switches and indicators LT1, LT3 by Salecom

• contacts: 1xSPST-NO
• illuminated, single pole momentary PCB switches with an SPST contact
• positive tactile feedback
• colours: red, green or yellow
• matching PCB indicators in red, green or yellow...

tact switches and indicators LT1, LT3 by Salecom

• contacts: 1xSPST-NO
• illuminated, single pole momentary PCB switches with an SPST contact
• positive tactile feedback
• colours: red, green or yellow
• matching PCB indicators in red, green or yellow
• momentary PCB switch
• switching capacity, max.: 100mA, 42VAC/DC
• test voltage (50Hz, 1 min.): >2000VAC
• operating life at max. switching capacity: >105 operations
• contact resistance: <100mΩ
• insulation resistance: >108Ω
• pperating force, max.: 3N ±0,75N
• PCB indicator reverse voltage: 5V
• PCB indicator reverse current: 10µA
• operating temperature: -40...+85°C
• by Salecom
