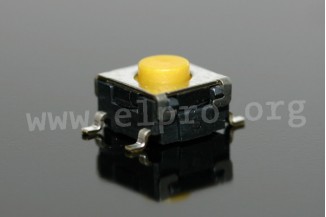

> Passive elements>Switches/keys>Tact switches>Omron tact switches, SMD, 6x6mm, B3S and B3FS-1000 series

Manufacturers

SMD, dimensions: 6x6mm, 1 NO

• high mechanical and electrical operating life
• sealed version, guarantees dust and humidity protection
• switching capacity, max.: 30mA/24V DC
• test voltage, 1min.: 500V AC
• switching type: 1 NO contact
• operating lif...

SMD, dimensions: 6x6mm, 1 NO

• high mechanical and electrical operating life
• sealed version, guarantees dust and humidity protection
• switching capacity, max.: 30mA/24V DC
• test voltage, 1min.: 500V AC
• switching type: 1 NO contact
• operating life with switching capacity
B3S-1000P: 500'000 operations
B3S-1002P: 300'000 operations
• operating force
B3S-1000P: 1.57N
B3S-1002P: 2.25N
• operating path: 0.25mm
• contact surface: silver cladding
• soldering temperature, max.: 230°C, 10s
• operating temperature: -25...+70°C

> More
--
