Schurter pushbutton series MCS 19

Vandalproof push button switches with 1x normally-open contact and an excellent quality. These momentary switches have soldering pins and are suitable for panel cut-outs of Ø19mm. They have a secure tactile input ...

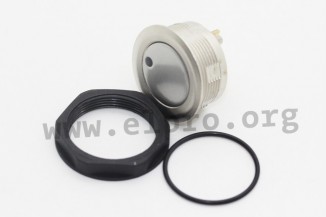

Schurter pushbutton series MCS 19

Vandalproof push button switches with 1x normally-open contact and an excellent quality. These momentary switches have soldering pins and are suitable for panel cut-outs of Ø19mm. They have a secure tactile input feedback and are IP40 rated. We offer the following types of this Schurter series: 1241.2801, 1241.2855, 1241.2856 and 1241.2858.

  • contact: 1x normally-open (SPST-NO)
  • panel cut-out: Ø19mm
  • maximal switching voltage: 48V DC
  • maximal switching current: 0,125A
  • maximal switching capacity: 1,2W
  • operating temperature: -25 to +60°C
> More
Data Sheet
Showing 1 - 4 of 4 products
