Schurter pushbutton series MSM/MSMII

Push buttons made out of premium steel, with build in protection against vandalism, one changeover contact, and a high build quality. These electronic parts are specifically made for installation on harsh envi...

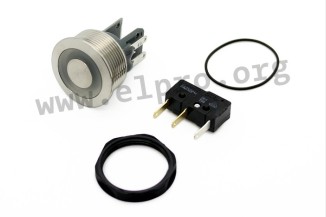

Schurter pushbutton series MSM/MSMII

Push buttons made out of premium steel, with build in protection against vandalism, one changeover contact, and a high build quality. These electronic parts are specifically made for installation on harsh environments  and they have a tactile enter-response. They are available with spot-/ ring-light or without a light. We offer various types of this Schuter series.

  • material: premium steel
  • contact: single switch
  • vandal-proof
  • maximal switching voltage: 250V AC
  • maximal switching current: 3A
  • maximal switching capacity: 1250W
  • maximal transition resistance <30mOhm
  • typical bounce time: <5ms
  • confirming force: 3,7N
  • confirming distance: 0,8mm
  • lifespan/zyklus : 200x10^3
  • forward voltage: 2V DC (spotlight red/green), 3,2V DC (spotlight blue), 24V DC (ringlight)
  • temperature range: -25 to +85°C
  • protection against mech. strain: IK06 (DIN EN 50102, MSM16), IK07 (DIN EN 50102, MSM19, 22,30)
  • protection: IP67
