> Passive elements>Switches/keys>Keys>Onpow push button switches, for Ø12mm panel cut-out, 1 normally open contact, GQ12 series

Manufacturers

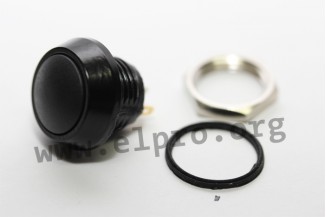

pushbutton momentary switches for Ø12mm panel cut-out

• single pole input pushbutton momentary switch with SPST-NO contact
• series GQ12
• solder terminals
• domed profile
• protection class IP65
• secure tactile input-feedback
• material shell: Zn Al
• ...

pushbutton momentary switches for Ø12mm panel cut-out

• single pole input pushbutton momentary switch with SPST-NO contact
• series GQ12
• solder terminals
• domed profile
• protection class IP65
• secure tactile input-feedback
• material shell: Zn Al
• material shell GQ12IP65-JS: stainless steel
• material actuator: PBT
• material actuator GQ12IP65-JS: stainless steel
• material contacts: CuZn 37/2,5µm Au body with colored actuator in black, red, yellow, orange, green, blue or white
• panel cut-out: Ø12mm
• wall strength: 1...5mm
• switching voltage, max.: 36V DC
• switching current, max.: 2A
• contact resistance: <50mΩ
• insulation resistance: >1000mΩ
• operating force: 5,5N
• operating life/cycles, mechanical: 105
• operating life/cycles, electrical: 204
• temperature range: -20...+70°C

> More
Data Sheet
--
