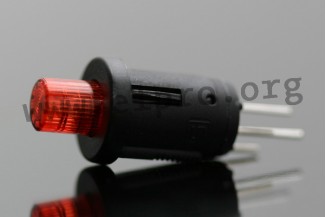

> Passive elements>Switches/keys>Keys>Schurter push button switches, for Ø8mm panel cut-out, 1 normally open contact, LDT and LDS series

Manufacturers

for Ø8mm panel cutouts by Schurter

• single pole input pushbutton switch or momentary switch with one SPST contact
• material
socket: thermoplastic PES
pushbutton: thermoplastic PC
• contacts: CuZn 37/5µm Au
• switching voltage, max.: 60V AC/50V DC
• sw...

for Ø8mm panel cutouts by Schurter

• single pole input pushbutton switch or momentary switch with one SPST contact
• material
socket: thermoplastic PES
pushbutton: thermoplastic PC
• contacts: CuZn 37/5µm Au
• switching voltage, max.: 60V AC/50V DC
• switching voltage, Min.: 100mV AC/DC
• switching current, max.: 0.2A
• switching capacity, max.: 1.2Ω
• contact resistance: <20 mΩ
• bounce time, Typ.: 0.5ms
• operating force LDT_: 1.5N ±0.3N
• operating path LDT_: 1.35mm ±0.2mm
• final operating path LDT_: 2.9mm±0.1mm
• stop strength: >50N
• operating life/cycles: 100000
• temperature range without LED: -25...+85°C
• temperature range with LED: -25...+60°C
• solderability: 235°C/2s
• protection class: IP40
• by Schurter
