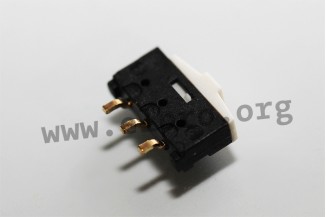

SMD slide switches ESP30/40 by ECE

• pitch 2.54mm
• all plastic parts flame-resistant in accordance with UL94V-0
• reflow soldering
• by ECE
• switching capacity: 0,5A, 12V DC/1mA, 10mV, Min.
• contact resistance, max.: 30mΩ
• dielectric strength: 2mA, ...

SMD slide switches ESP30/40 by ECE

• pitch 2.54mm
• all plastic parts flame-resistant in accordance with UL94V-0
• reflow soldering
• by ECE
• switching capacity: 0,5A, 12V DC/1mA, 10mV, Min.
• contact resistance, max.: 30mΩ
• dielectric strength: 2mA, 500V DC/1min.
• capacitance, max.: 1,5pF
• insulation resistance (500V DC): 10000MΩ/1min.
• operations: 10000
• operating temperature: -25...+70°C
• soldering temperature: 240°C/20s
• soldering temperature, max.: 260°C
• vibration test: normal operation 10...60Hz, 1.5mm movement
• corrosion test (salt solution): 35°C, 5%/24h

> More
Data Sheet
--
Showing 1 - 2 of 2 products
  • Product Stock Unit price Volume discounts
  • ECE
    ESP3020
    0,619 €
    39600 ESP3020 ESP3020
    0,619 €

    More
    Stock: 115
  • ECE
    ESP4020 by ECE
    0,364 €
    39601 ESP4020 ESP4020
    0,364 €

    More
    Stock: 371
Showing 1 - 2 of 2 products
