6mm plastic axis

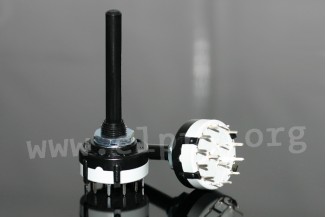

* Standard-One-Level rotary switch with maximum 12 operating positions
* non-shorting version
* the number of switching positions is from 2 to 12 adjustable and limited due to a stopwasher
* with solder pin (PC-contact)
* operating vo...

6mm plastic axis

* Standard-One-Level rotary switch with maximum 12 operating positions
* non-shorting version
* the number of switching positions is from 2 to 12 adjustable and limited due to a stopwasher
* with solder pin (PC-contact)
* operating voltage: 250V AC/DC
* test voltage: 1500V
* switching current 250V AC/DC: 0.15A
* contact resistance: <20mΩ
* isulation resistance, 500V DC: >999MΩ
* contacts: brass
* surface: silver-plated
* insulation shell: polyamide 6.6, glass-filled
* operating life: >10'000 cycles
* division: 30°
* holes: for M 10+0,1mm
* shaft diameter (A): 6mm
* shaft length (B): 50mm
* no smoothing (D)
* mounting bushing: M 10x0.75

* DSS 5: 1 pole, 12 positions
* DSS 6: 2 pole, 6 positions
* DSS 7: 3 pole, 4 positions
* DSS 8: 4 pole, 3 positions

> More
Data Sheet
Showing 1 - 4 of 4 products
  • Product Stock Unit price Volume discounts
  • Lorlin Electronics
    DSS 5
    2,49 €
    13217 DSS 5 CK-1049 CK-1049
    2,49 €
    Stock: 4305
  • Lorlin Electronics
    DSS 6
    2,19 €
    13218 DSS 6 CK-1050 CK-1050
    2,19 €
    Stock: 2867
  • Lorlin Electronics
    DSS 7
    2,49 €
    13219 DSS 7 CK-1051 CK-1051
    2,49 €
    Stock: 1668
  • Lorlin Electronics
    DSS 8
    2,59 €
    13220 DSS 8 CK-1052 CK-1052
    2,59 €
    Stock: 458
