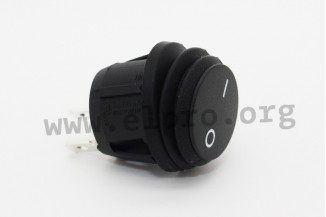

> Passive elements>Switches/keys>Rocker switch>Shin Chin rocker switches, round, IP65, for Ø20,2mm panel cut-out, 1-pole, R13-112 series

Manufacturers

for Ø20,2mm panel cut-out series R13-112

• operating voltage, max.: 12V/250V AC
• switching current, max.: 10A (4)/250V AC
• IP65
• ambient temperature, max.: 85°C
• insulation resistance (500V DC): 100MΩ
• material shell and rocker: nylon 6.6/UL94-V2
*...

for Ø20,2mm panel cut-out series R13-112

• operating voltage, max.: 12V/250V AC
• switching current, max.: 10A (4)/250V AC
• IP65
• ambient temperature, max.: 85°C
• insulation resistance (500V DC): 100MΩ
• material shell and rocker: nylon 6.6/UL94-V2
• material illuminated rocker: polycarbonate
• terminals: silver-plated
• connector: 4,8x0,8mm

> More
Data Sheet
--
