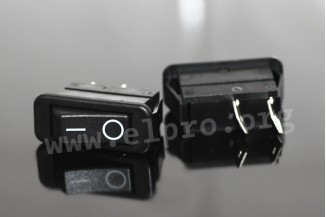

Arcolectric rocker switches, 16A, for 11 resp. 22x30mm panel cut-out, 1300/1350/1353 series

• 1- and 2-pole versions
• with connector 6.3x0.8mm
• max. 250V AC operating voltage
• max. 16A switching current
• max. 6 resp. 4A switching current at inductive load
• inrush current (EN61058-1): 150A
• insulation resistance: >20MΩ
• contact resistance...

• 1- and 2-pole versions
• with connector 6.3x0.8mm
• max. 250V AC operating voltage
• max. 16A switching current
• max. 6 resp. 4A switching current at inductive load
• inrush current (EN61058-1): 150A
• insulation resistance: >20MΩ
• contact resistance (new state, 12V DC/1A): <100mΩ
• contact opening width: <3mm
• soldering conditions (hand solder): 350°C/6s
• material of shell and rocker: nylon 6.6
• material of current-carrying part: Cu alloy
• silver-plated contacts
• flammability class: UL94V2
