> Passive elements>Switches/keys>Toggle switches>Bulgin toggle switches, 10 to 16A, IP67, for Ø10,8mm cutout, 3900 series

Manufacturers

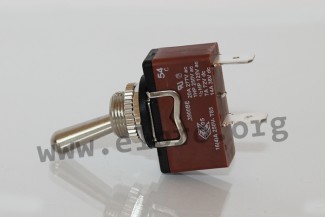

for Ø10.8mm panel cut-out series 3900 by Arcolectric

*single pole leverswitch
* IP67 sealed from panelside
* for central mounting
* 6,3mm solderterminals
* metal lever
* ratet up to 250V/10A (C3900BE: 16A)
* lever protection cap available
* operating vol...

for Ø10.8mm panel cut-out series 3900 by Arcolectric

*single pole leverswitch
* IP67 sealed from panelside
* for central mounting
* 6,3mm solderterminals
* metal lever
* ratet up to 250V/10A (C3900BE: 16A)
* lever protection cap available
* operating voltage, max.: 250V AC
* switching current, max.: 10A
* switching current C3900BE, max.: 16A
* switching current at inductive load, max.: 4A
* ambient temperature, max.: 85°C
* insulation resistance: >20MΩ
* contact resistance (new state, 12V DC/1A): <100mΩ
* soldering conditions (hand solder): 350°C/6s
* material shell: nylon 6.6
* material lever: brass, nickel-plated
* material current-carrying part:Cu Alloy
* contacts: silver-plated
* flammability class: UL94V2
* wall strength panel cut-out: 4mm
* by Arcolectric

> More
Data Sheet
