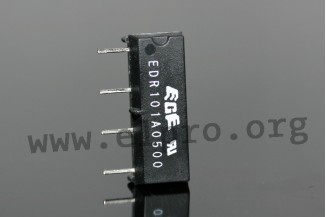

> Passive elements>Relays>Reed relays>ECE reed relays, SIL housing, 1 normally open contact, EDR series

Manufacturers

reed relays, SIL housing, 1 normally-open

• wash tight
• high coil resistance
• insulation resistance (coil/contacts): 1400V
• requires only half the PCB area of DIP/DIL relays
• EDR 1D_: with diode
• configuration: SPST-NO
• switching capacity, max.: 1...

reed relays, SIL housing, 1 normally-open

• wash tight
• high coil resistance
• insulation resistance (coil/contacts): 1400V
• requires only half the PCB area of DIP/DIL relays
• EDR 1D_: with diode
• configuration: SPST-NO
• switching capacity, max.: 10VA
• switching voltage, max.: 100V DC
• switching current, max.: 0.5A
• transport current, typ.: 1A
• contact resistance, max.: 150mΩ
• insulation resistance, min. (coil/contacts): 1010Ω
• breakdown voltage (coil/contacts): 1400V DC
• operate time, max. (incl. bounce): 1ms
• release time, max.: 0.5ms
• vibration resistance: 30G
• temperature range: -40...+85°C
• coil data: polarized, monostable

> More
--
Showing 1 - 6 of 6 products
