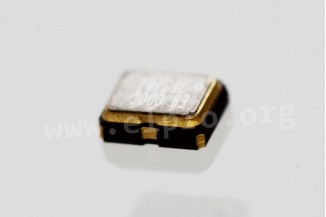

SMD crystal oscillators SG-310 by Epson

• frequency: 4...48MHz
• in metal housing 3.2x2.5x1.05mm
• frequency tolerance (-20...+70°C): ±100ppm
• operating temperature: -40...+85°C
• operating voltage (VCC): 2.7...3.6V DC
• current requirement, max.
4...8...

SMD crystal oscillators SG-310 by Epson

• frequency: 4...48MHz
• in metal housing 3.2x2.5x1.05mm
• frequency tolerance (-20...+70°C): ±100ppm
• operating temperature: -40...+85°C
• operating voltage (VCC): 2.7...3.6V DC
• current requirement, max.
4...8MHz: 2mA (3,3V)
8...25MHz: 2.5mA (3,3V)
25...33MHz: 3.5mA (3,3V)
33...48MHz: 4.5mA (3,3V)
• output voltage
"1"-Level, min.: 90% VCC
"0"-Level, max.: 10% VCC
• by Epson

> More
Data Sheet
--
Showing 1 - 1 of 1 product
  • Product Stock Unit price Volume discounts
  • Epson
    Q33310F70017014
    0,882 €
    43311 Q33310F70017014 Q33310F70017014
    0,882 €

    More
    Stock: 580
Showing 1 - 1 of 1 product
