Manufacturers

NW 10-1 560 k

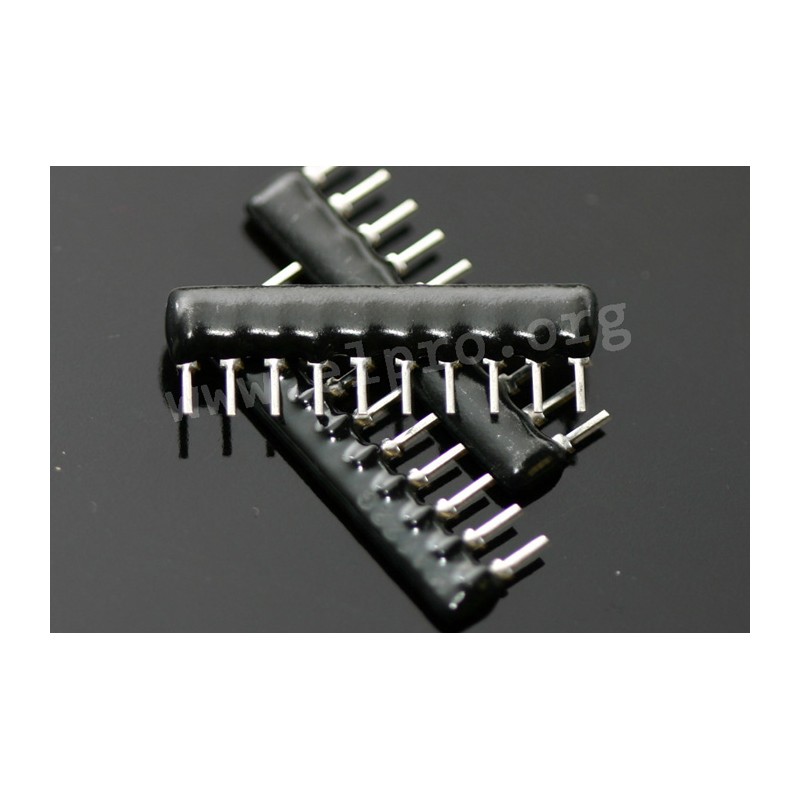

resistor networks

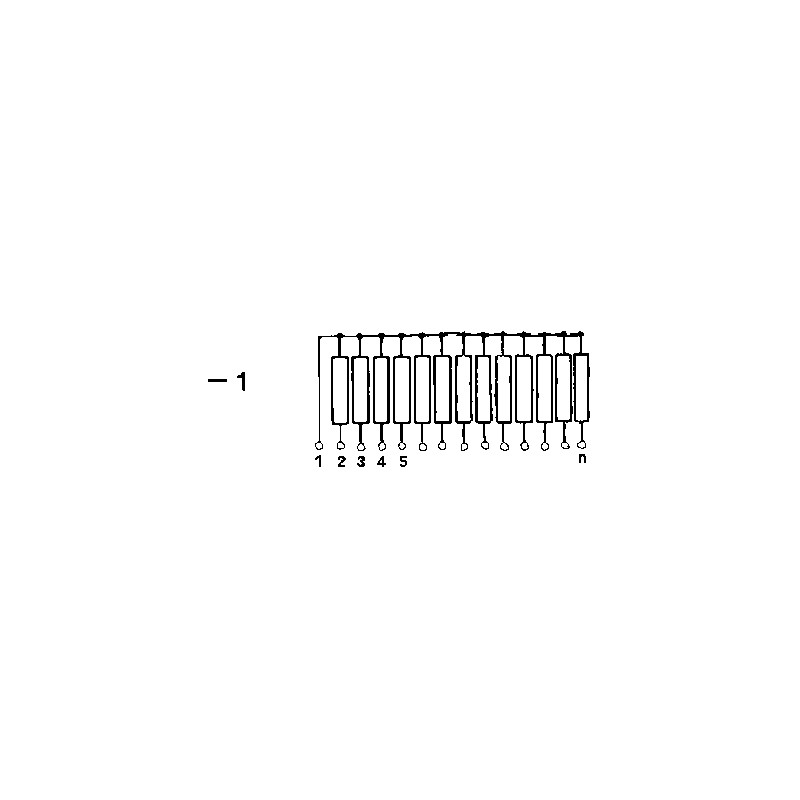

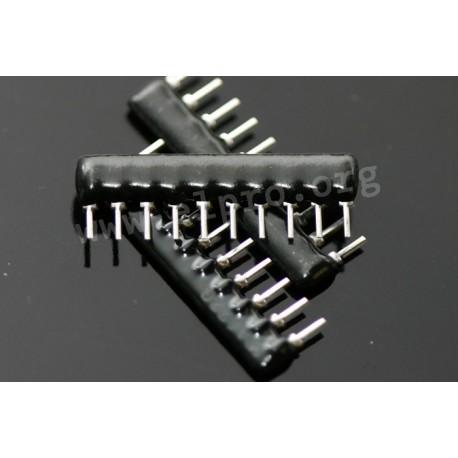

• with 9 resistors and 10 pins
• power: 0.125W
• tolerance: ±5%

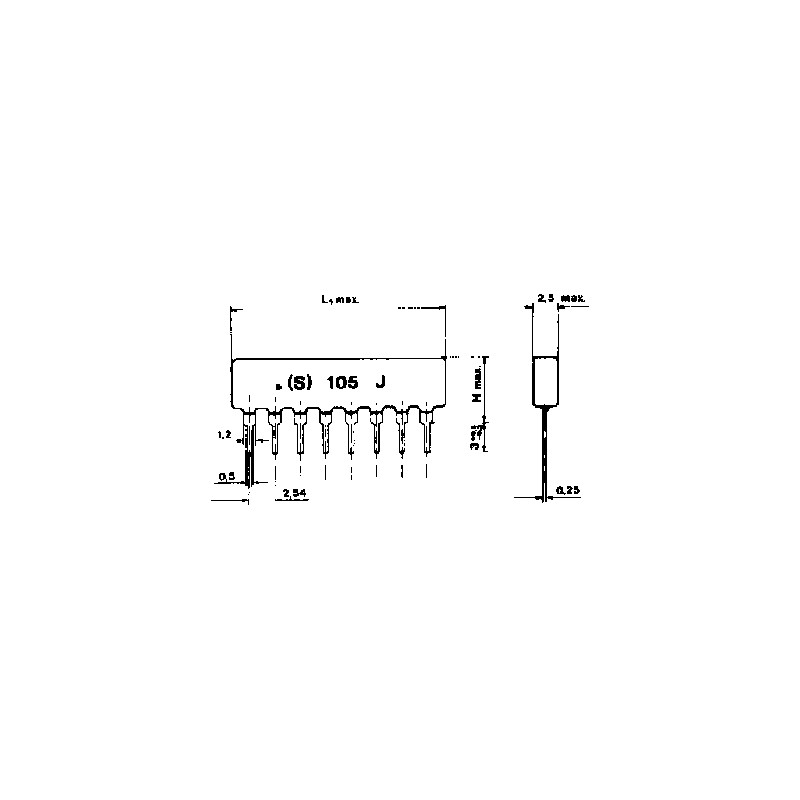

• single inline (SIL) housing


• operating spannung Umax.: 100V
• operating temperature range: -55...+125°C
• compact size
• hohe stability

NW 10-1 560 k

10248 NW 10-1 560 k NW 10-1 560 k resistor networks. • with 9 resistors and 10 pins• power: 0.125W• tolerance: ±5%• single inline (SIL) housing • operating spannung Umax.: 100V• operating temperature range: -55...+125°C• compact size• hohe stability

Specifications

Resistance [Ω] 560k
Power [W] 0,125
Tolerance [%] 5

Unit price

0,128 €

Stock: 0
Further delivery:
CW 11/2025

Minimum order quantity 5.000 units or
multiples of 5.000.
