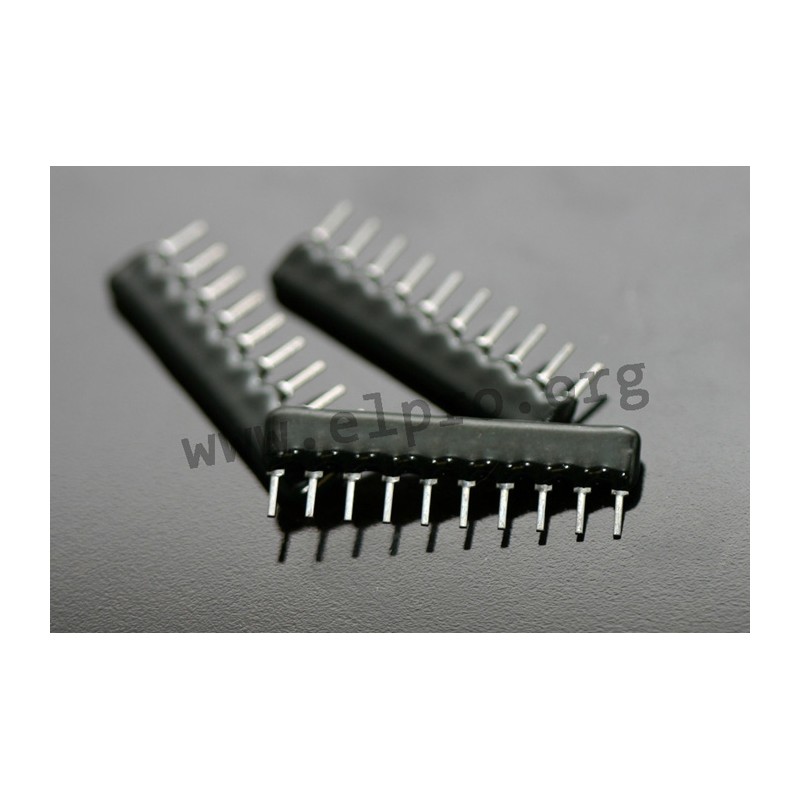

NW 10-3 6,8 k

resistor networks

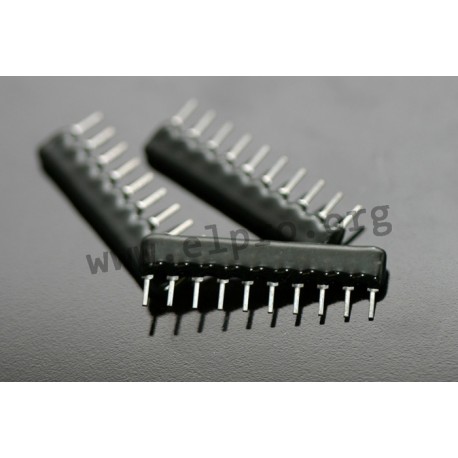

• with 5 resistors and 10 pins
• power: 0.2W
• tolerance: ±5%
• single inline (SIL) housing


• operating voltage Umax.: 100V
• operating temperature range: -55...+125°C
• compact size
• high stability

NW 10-3 6,8 k

10312 NW 10-3 6,8 k NW 10-3 6,8 k resistor networks. • with 5 resistors and 10 pins• power: 0.2W• tolerance: ±5%• single inline (SIL) housing • operating voltage Umax.: 100V• operating temperature range: -55...+125°C• compact size• high stability

Specifications

Resistance [Ω] 6,8k
Power [W] 0,2
Tolerance [%] 5

Unit price

0,133 €

Stock: 0
Further delivery:
CW 11/2025

Minimum order quantity 5.000 units or
multiples of 5.000.
