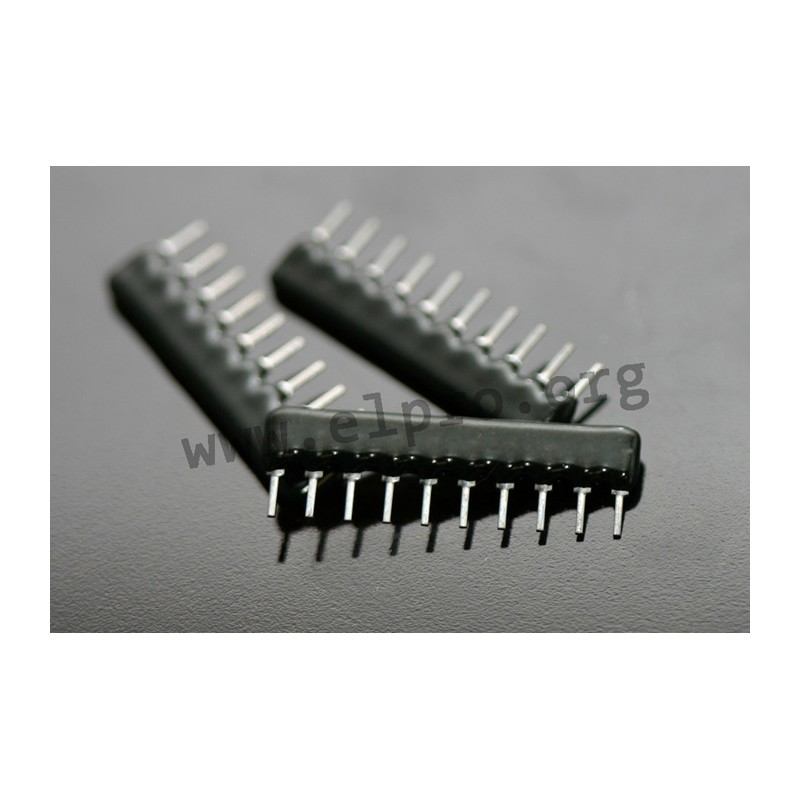

NW 10-3 10 k

resistor networks

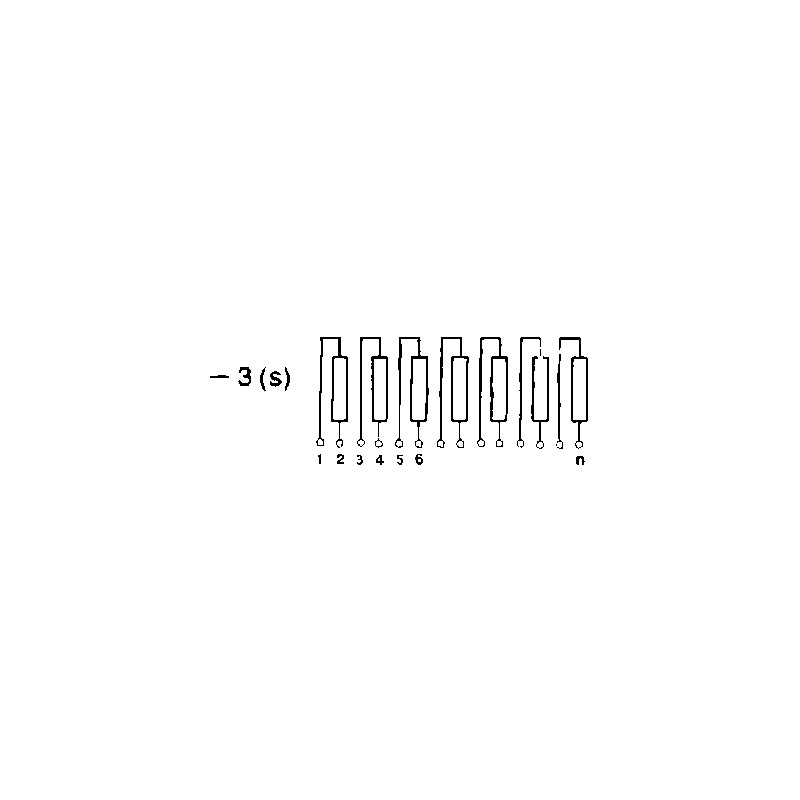

• with 5 resistors and 10 pins
• power: 0.2W
• tolerance: ±5%
• single inline (SIL) housing


• operating voltage Umax.: 100V
• operating temperature range: -55...+125°C
• compact size
• high stability

NW 10-3 10 k

10266 NW 10-3 10 k NW 10-3 10 k resistor networks. • with 5 resistors and 10 pins• power: 0.2W• tolerance: ±5%• single inline (SIL) housing • operating voltage Umax.: 100V• operating temperature range: -55...+125°C• compact size• high stability

Specifications

Resistance [Ω] 10k
Power [W] 0,2
Tolerance [%] 5

Unit price

0,138 €

Stock: 2774
Further delivery:
CW 11/2025

Minimum order quantity 1 to 74 units or multiples of 100 plus 0 to 74 .
