> Semiconductors>LCD displays>Dot matrix modules>1 line, 16 characters>DEM 16101 SYH-LY

Manufacturers

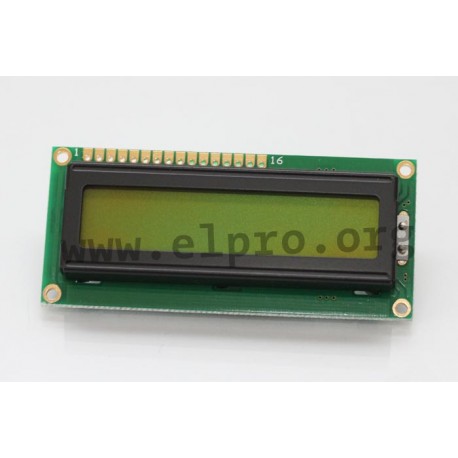

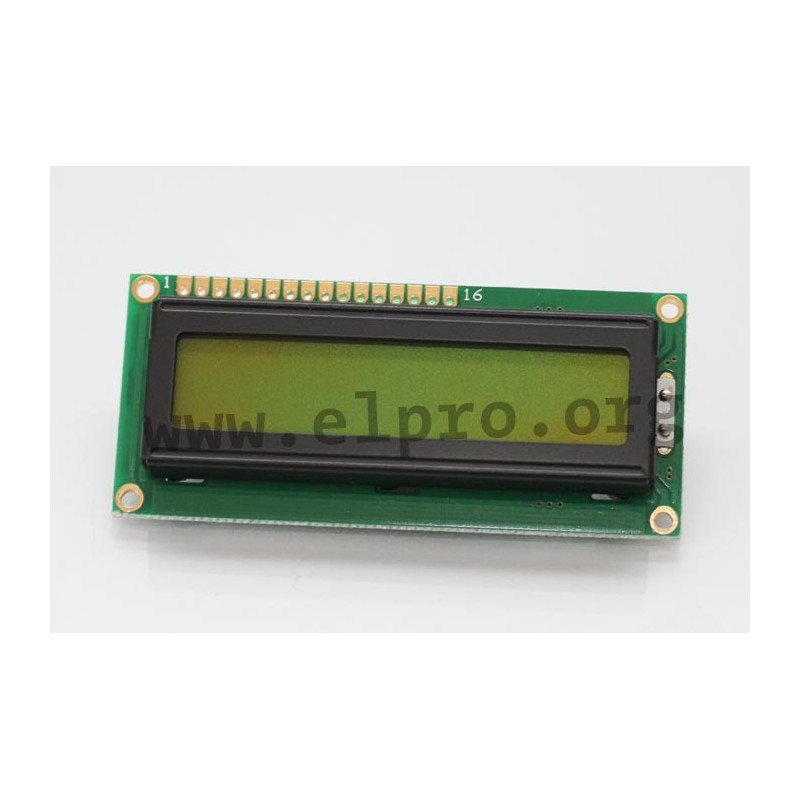

DEM 16101 SYH-LY

LCD dot matrix modules

• dot matrix modules with 1 line and 16 characters
​• high contrast LCD-STN display
• LED backlight
• characters: black
• by Display Elektronik
• interface for 4- or 8-Bit data bus
• supply voltage: 5V
• operating temperature range: -20 to +70°C

DEM 16101 SYH-LY

DEM 16101 SYH-LY

8232 DEM 16101 SYH-LY DEM16101SYH-LY DEM16101SYH-LY LCD dot matrix modules. • dot matrix modules with 1 line and 16 characters​• high contrast LCD-STN display• LED backlight• characters: black• by Display Elektronik• interface for 4- or 8-Bit data bus• supply voltage: 5V• operating temperature range: -20 to +70°C

Specifications

manufacturer
Manufacturer's name DEM16101SYH-LY
Character size [mm] 3,2x5,95
Background yellow/green
Illumination yellow
Lines 1
Characters 16
Field of view [mm] 63,5x13,8
Dimensions [mm] 80x36x13
Data Sheet

Unit price

12,49 €

Stock: 76
Further delivery:
CW 50/2024
